Agricultural Irrigation Canal Liner
PE Anti-Leakage Fabric
Heavy-duty polyethylene liner that prevents water leakage in irrigation canals, improving water efficiency by up to 40% while protecting channel beds from erosion
Product Overview
Our agricultural irrigation canal liner is a heavy-duty polyethylene fabric engineered to prevent water leakage in farm irrigation channels. This impermeable membrane creates a reliable barrier between water and soil, significantly reducing seepage losses that can waste up to 60% of irrigation water in unlined canals.
The durable PE material resists punctures, UV degradation, and chemical exposure while protecting canal beds from erosion. Easy to install in both new and existing irrigation systems, this liner improves water distribution efficiency, reduces pumping costs, and ensures more consistent water delivery to crops.
Maximum Water Conservation
Reduces water loss from seepage by 95% or more, improving irrigation efficiency by 30-40% and conserving precious water resources in agricultural operations.
Irrigation Efficiency Benefits
Zero Water Seepage
Impermeable membrane prevents water loss into surrounding soil
Erosion Protection
Shields canal beds from water erosion and sediment buildup
Long Service Life
UV-stabilized for 10+ years of continuous use in harsh conditions
Cost Savings
Reduces pumping costs and water usage by 30-40%
Quick Specifications
Ideal for All Irrigation Systems

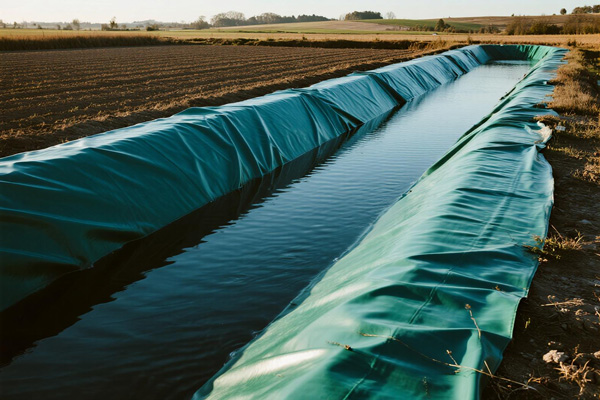

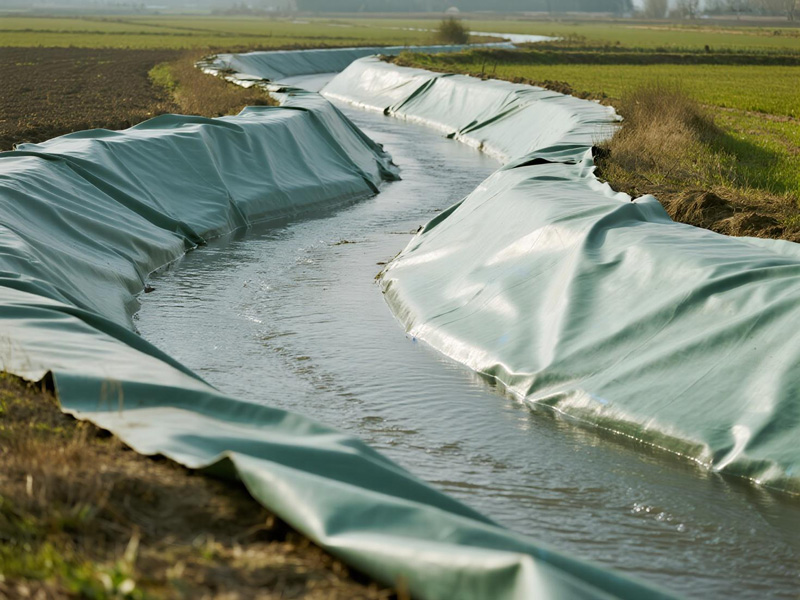

Agricultural Canals
Primary and secondary irrigation channels in crop farms and plantations

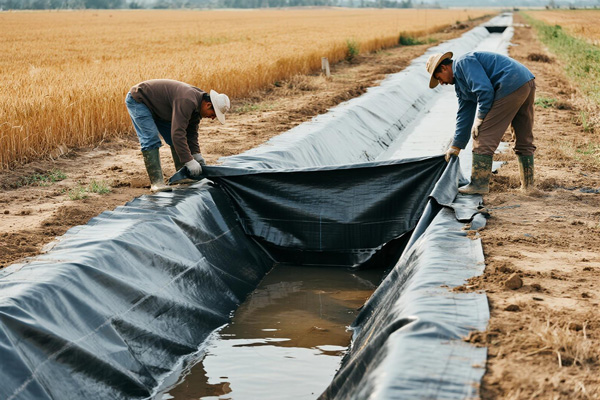

Field Ditches
Smaller distribution channels delivering water directly to crop fields

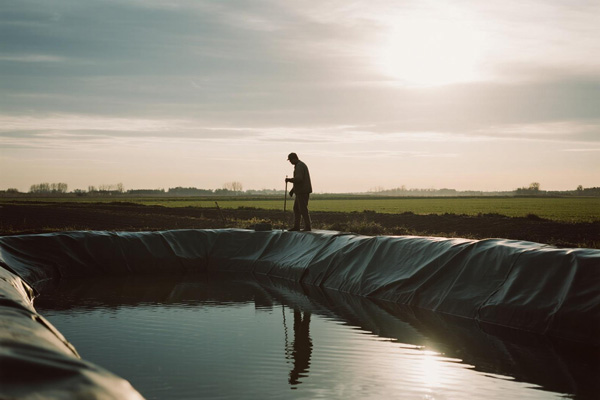

Reservoirs & Ponds
Water storage facilities requiring complete waterproofing

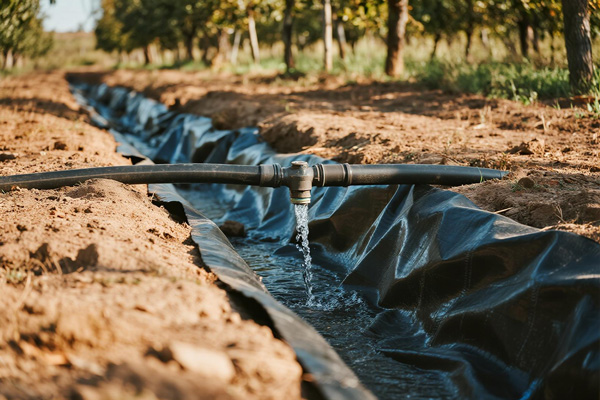

Orchard Irrigation
Water delivery systems for fruit tree plantations and vineyards
Advanced Anti-Leakage Technology
Impermeable Barrier
Multi-layered polyethylene construction with heat-sealed seams creates a 100% waterproof barrier that eliminates water seepage even in high-pressure conditions.
Reinforced Durability
High-density polyethylene with woven reinforcement grid resists punctures, tears, and abrasions from rocks, roots, and agricultural equipment.
Environmental Resistance
UV-stabilized formula and chemical resistance protect against degradation from sunlight, fertilizers, pesticides, and soil contaminants.
Temperature Tolerance
Maintains integrity in extreme temperatures from -40°C to +70°C (-40°F to +158°F), ensuring reliable performance in all climate zones.
Secure Seaming
Heat-weldable material allows for seamless joint connections, creating a continuous waterproof barrier even in wide canals and custom configurations.
Installation Applications
New Canal Construction
Existing Canal Renovation
Wide Channel Systems
Deep Irrigation Ditches
Water Storage Reservoirs
Orchard Water Channels
Greenhouse Irrigation
Sloped Terrain Channels
Technical Specifications
| Specification | Details |
|---|---|
| Material | UV-stabilized high-density polyethylene (HDPE) with woven reinforcement |
| Thickness Options | 0.3mm (light duty, small channels) 0.5mm (standard duty, medium channels) 0.8mm (heavy duty, large canals) 1.0-1.5mm (extra heavy duty, high pressure) |
| Widths | 2m, 3m, 4m, 5m, 6m, 7m, 8m (custom widths available upon request) |
| Lengths | 50m, 100m, 200m rolls (custom lengths available) |
| Water Impermeability | 100% waterproof with zero measurable seepage under standard conditions |
| Expected Lifespan | 0.3-0.5mm: 10 years 0.8mm: 15 years 1.0-1.5mm: 20+ years (under normal environmental conditions) |

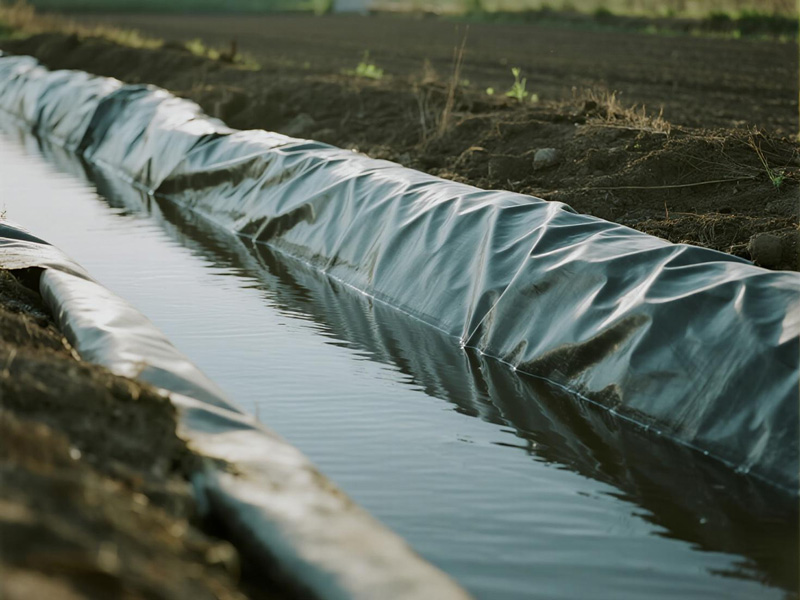

Professional Installation Process
Canal Preparation
Clear channel of debris, rocks, and sharp objects. Level and compact soil substrate to create a smooth base.
Liner Placement
Unroll liner along prepared canal bed, allowing sufficient overlap (30-50cm) at seams for proper sealing.
Seam Sealing
Heat weld or use specialized adhesive to create watertight seals at overlaps, ensuring continuous barrier protection.
Anchoring & Testing
Secure edges with anchor trenches or pins. Conduct water test to verify complete waterproofing before full implementation.
Frequently Asked Questions
Maximize Water Efficiency in Your Irrigation System
Our professional-grade canal anti-leakage fabric reduces water loss by up to 95%, lowers operational costs, and ensures reliable water delivery to your crops.
