Heavy-Duty PVC Emergency Relief Tarpaulin
Multi-purpose disaster relief shelter for emergency housing, field hospitals, and aid stations
Product Description
Our heavy-duty PVC emergency relief tarpaulin is specifically engineered for disaster response and humanitarian aid operations. This versatile shelter solution provides immediate protection in crisis situations, serving as temporary housing, field hospitals, supply storage, and emergency aid stations in the aftermath of natural disasters.
Designed for rapid deployment by relief teams, these durable tarps feature reinforced construction, weather resistance, and multi-purpose functionality to meet the diverse needs of disaster-stricken communities. The material's rugged durability ensures long-term use in challenging environments with minimal maintenance.
Humanitarian Aid Essential
Trusted by NGOs and relief organizations worldwide, with rapid deployment capability (4 people can set up a 20m² shelter in under 15 minutes). Meets international humanitarian aid standards for emergency shelters.
Core Relief Features
All-Weather Protection
Waterproof and weather-resistant in extreme conditions
Rapid Deployment
Quick setup in emergency situations
Durable Construction
Withstands harsh environments and heavy use
Multi-Purpose Design
Adaptable to various relief scenarios
Global Relief Use
Trusted by NGOs and aid organizations worldwide
Emergency Delivery
24-48 hour dispatch for crisis situations
Service Life
2-5 years in continuous field use
Compliance
Meets Red Cross and UNHCR shelter standards
Key Features & Benefits
Extreme Weather Protection
100% waterproof construction with UV resistance to protect against rain, snow, and intense sunlight in disaster zones.
Rapid Deployment System
Designed for quick setup by small teams, critical for emergency shelter establishment in disaster response.
Portable & Lightweight
Compact when folded for easy transportation in relief convoys and airlifts to remote disaster areas.
Multi-Purpose Functionality
Adaptable for shelter, medical facilities, storage, and protection of critical supplies in various relief scenarios.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Reinforced PVC with high-tenacity polyester scrim |
| Thickness | 0.5mm - 1.2mm (standard and heavy-duty options) |
| Weight | 500g/m² to 1200g/m² (based on application) |
| Standard Sizes | 5x6m, 6x8m, 8x10m, 10x12m, 12x15m, 15x20m |
| Maximum Custom Size | Up to 20m width (unlimited length with welded seams) |
| Water Resistance | 100% waterproof with heat-sealed seams |
| Temperature Resistance | -40°C to +70°C (-40°F to +158°F) |
| UV Resistance | UV stabilized for 2+ years continuous exposure |
| Colors | Orange (high visibility), Blue, White, Olive Green |
Relief Operation Applications

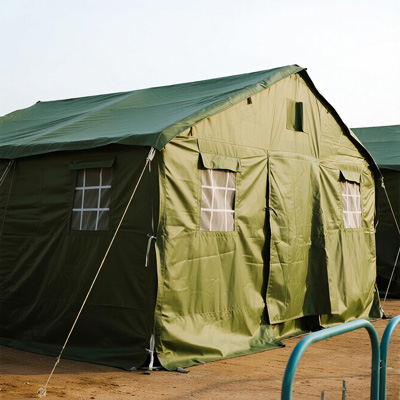

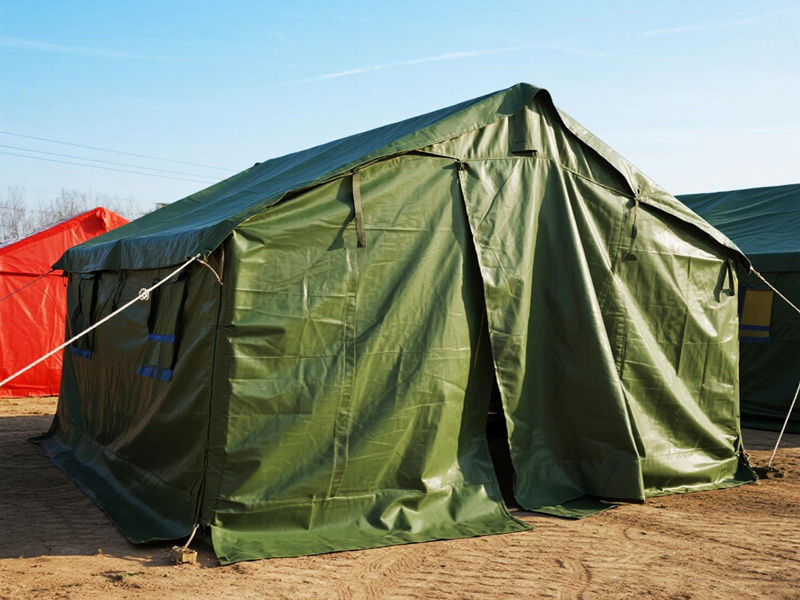

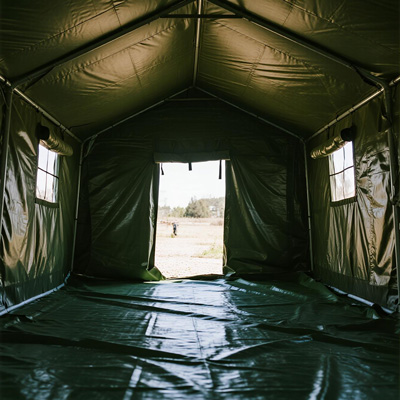

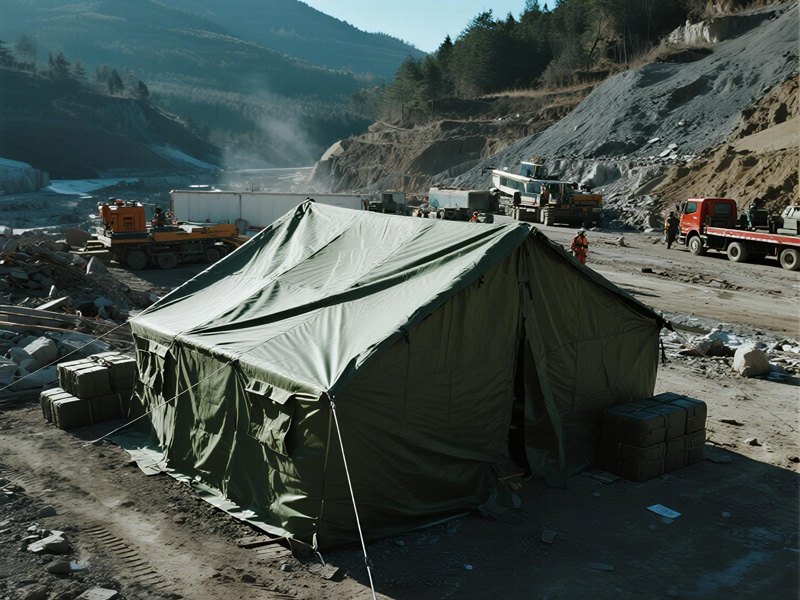

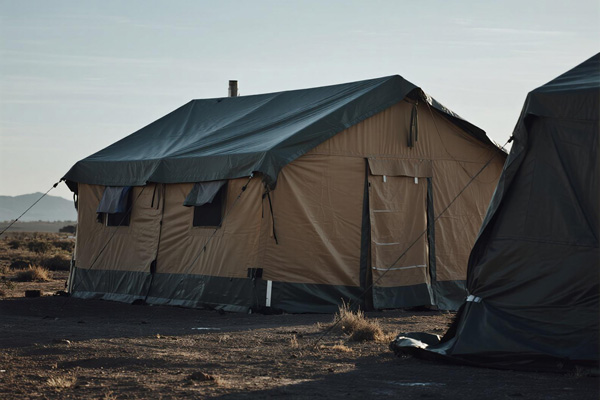

Temporary Housing
Immediate shelter solutions for displaced populations following earthquakes, floods, and storms.
- Quick assembly for urgent housing needs
- Protection from elements for vulnerable populations
- Modular design for village-scale shelter camps

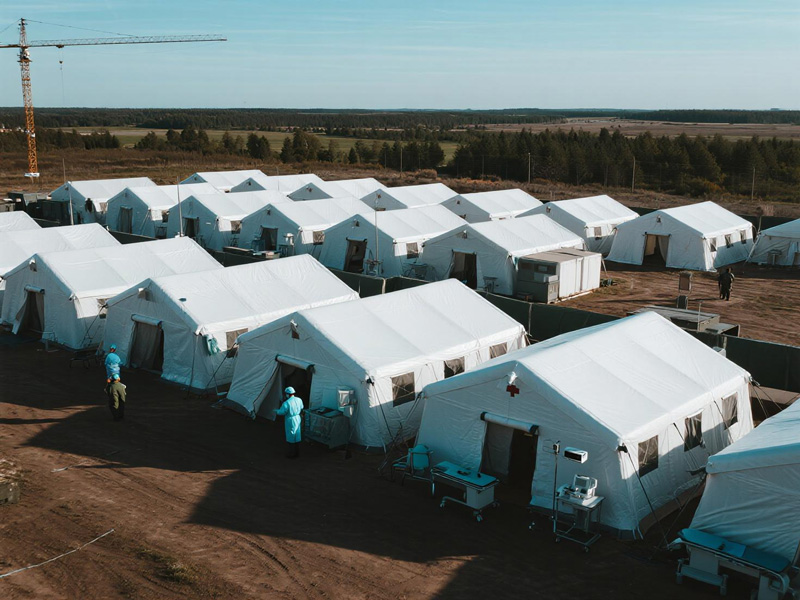

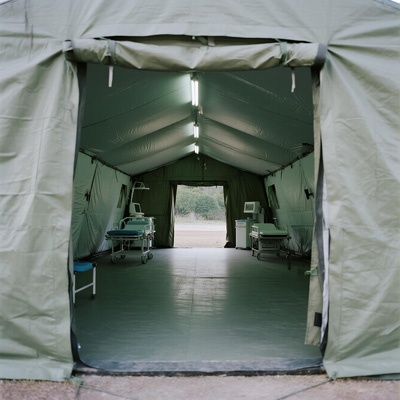

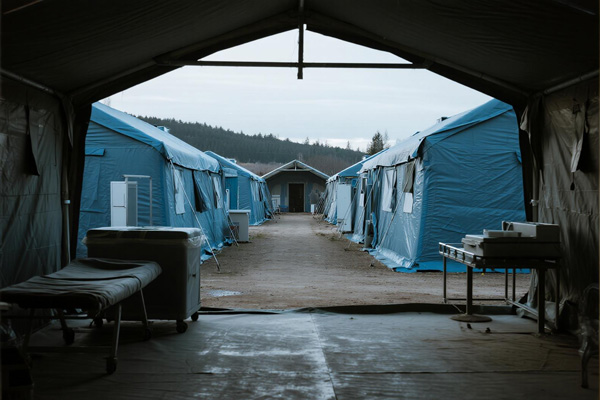

Medical Facilities
Field hospitals, triage centers, and medical supply storage in disaster zones.
- Protected space for emergency medical treatment
- Hygienic environment for medical procedures
- Secure storage for medicines and medical equipment

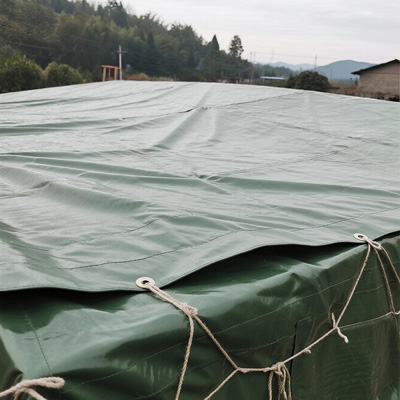

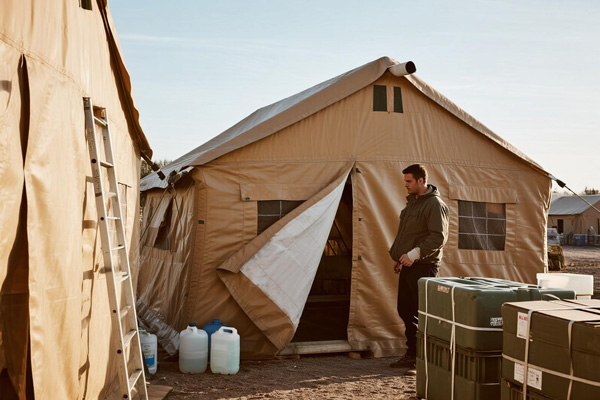

Supply Protection
Secure storage for food, water, and relief supplies in emergency zones.
- Weatherproof storage for critical relief supplies
- Protection from contamination and environmental damage
- Secure distribution centers for aid organizations

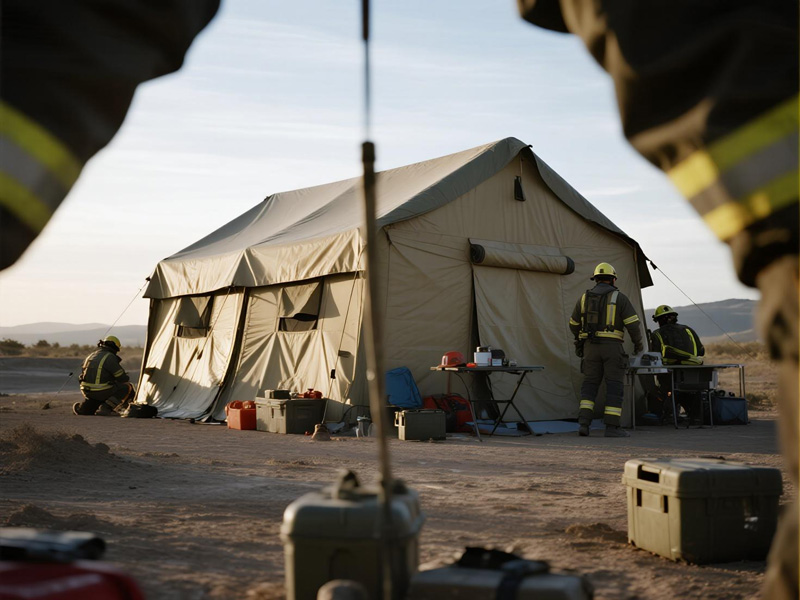

Relief Operation Gallery
Frequently Asked Questions
Field Deployment Guide
1 Preparation & Site Selection
- Choose level ground free from sharp objects, debris, and potential hazards
- Clear area of rocks, branches, and other items that could damage the tarp
- Identify and prepare support structures (poles, trees, or portable frames)
2 Tarp Unfolding & Positioning
- Unfold tarp carefully, ensuring the correct side faces outward (labeled if applicable)
- Position tarp over support structure with equal overhang on all sides
- For multiple tarps, overlap by at least 50cm to ensure weatherproofing
3 Securing & Anchoring
- Start by securing corners first, ensuring proper tension across the tarp surface
- Use appropriate anchors for terrain: stakes for soil, weights for hard surfaces
- Space intermediate fasteners every 50-100cm along all edges for maximum stability
4 Shelter Enhancement
- Create adequate slope for water runoff to prevent pooling
- Secure base edges close to ground to prevent wind intrusion
- For medical facilities, ensure proper ventilation while maintaining protection
Need Emergency Relief Tarps for Humanitarian Missions?
Our team specializes in supporting relief organizations with rapid deployment shelter solutions. We can provide custom configurations and emergency delivery to crisis zones worldwide.
Our Humanitarian Relief Experience
Global Relief Operations
Our tarps have supported relief efforts in over 70 countries, assisting millions affected by natural disasters and humanitarian crises.
NGO Partnerships
Trusted partner to major international aid organizations, including Red Cross, UNHCR, and various humanitarian NGOs.
Emergency Response
24/7 emergency response team ready to process urgent orders and coordinate delivery to crisis zones worldwide.
