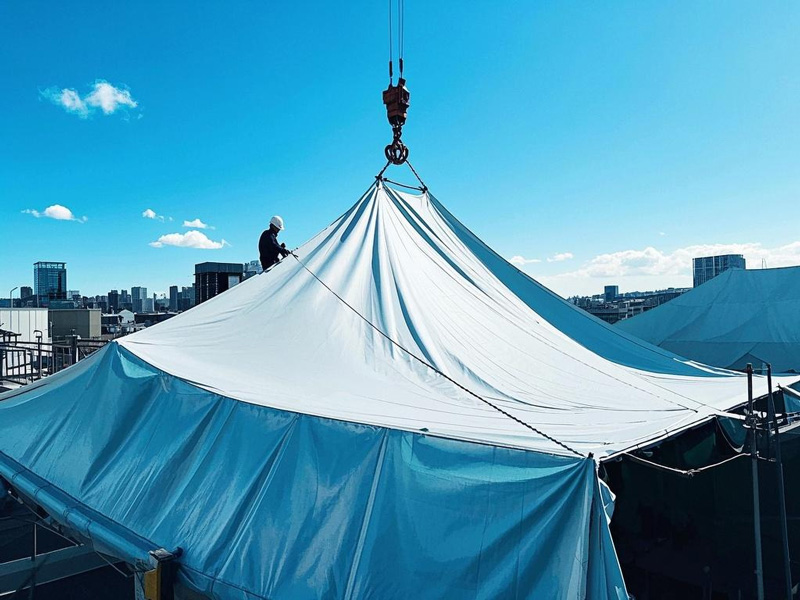

Heavy-Duty Temporary Construction Shelter Roof Tarp
Weather-resistant PVC roofing for job site shelters, temporary structures, and construction enclosures
Product Description
Our heavy-duty temporary construction shelter roof tarp is engineered to provide reliable protection for job site structures, temporary warehouses, and construction enclosures. Made from reinforced PVC, this durable roofing material offers superior weather resistance, UV protection, and tear strength to withstand the harsh conditions of construction environments.
Designed specifically for overhead applications, these roof tarps feature reinforced edges, heavy-duty grommets, and weather-sealed seams to prevent water penetration. The material's flexibility allows for installation on various temporary structure frames while maintaining structural integrity during wind and weather events.
All-Weather Protection System
Tested to withstand extreme weather conditions including heavy rain (up to 150mm/hour), wind speeds up to 90km/h, and continuous UV exposure. The material maintains integrity in temperatures ranging from -30°C to +70°C.
Core Protective Features
100% Waterproof
Watertight construction prevents leakage
UV Resistant
Protects against sun damage and degradation
Tear Resistant
Reinforced material withstands strong winds
Flame Retardant
Meets fire safety standards for construction sites
Global Construction Use
Trusted on job sites worldwide
Lead Time
5-10 days for standard sizes
Service Life
3-5 years in outdoor construction environments
Warranty
3-year manufacturer warranty against defects
Key Features & Benefits
Heavy-Duty Construction
Reinforced PVC material with high-tensile polyester scrim for superior strength and durability.
Superior Water Resistance
Heat-welded seams and waterproof coating ensure complete protection against rain and moisture.
Wind Resistant Design
Strategically placed reinforced grommets and hemmed edges for secure anchoring in high winds.
Reusable & Recyclable
Durable design allows for multiple installations, with recycling options at end of service life.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Reinforced PVC with high-tenacity polyester scrim |
| Thickness | 0.6mm - 1.5mm (depending on wind load requirements) |
| Weight | 600g/m² to 1600g/m² (based on thickness and reinforcement) |
| Standard Sizes | 3x4m, 4x5m, 5x6m, 6x8m, 8x10m, 10x12m, 12x15m |
| Maximum Custom Size | Up to 20m width (unlimited length with heat-welded seams) |

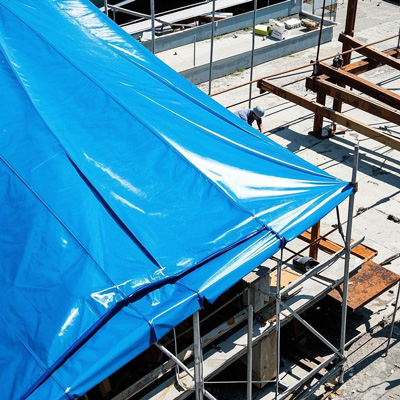

| Grommet Spacing | Every 50cm along all edges, with additional reinforced corners |
| Temperature Resistance | -30°C to +70°C (-22°F to +158°F) |
| Flame Rating | Meets DIN 4102 B1, UL94 V-0, and NFPA 701 standards |
| Colors | White (high reflectivity), Gray, Blue, Green, Black |
Construction Site Applications

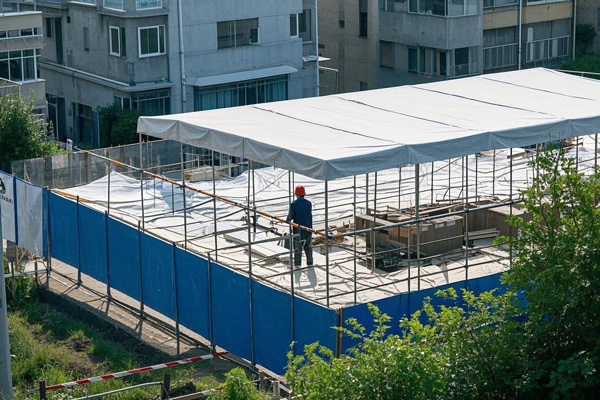

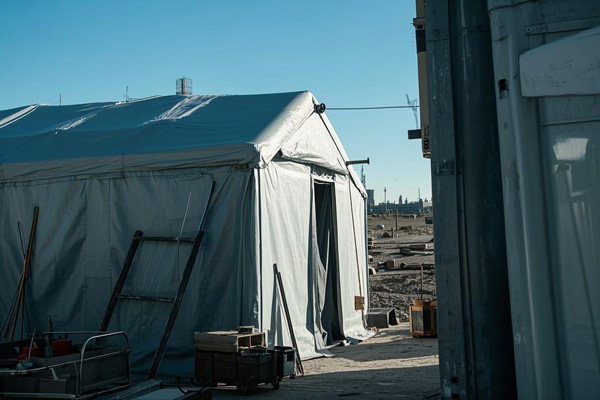

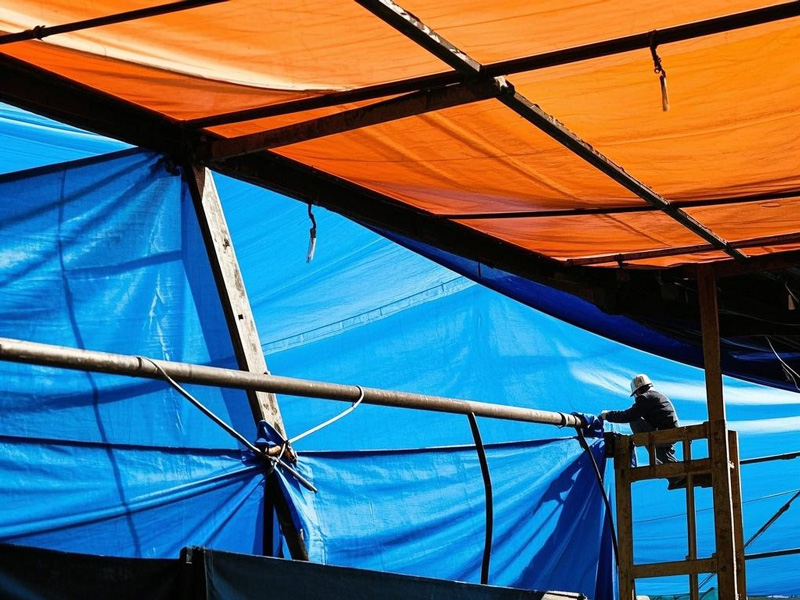

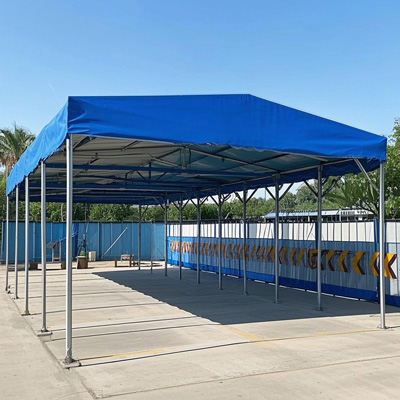

Job Site Shelters
Roofing for temporary worker shelters, material storage, and on-site offices.
- Protects workers from weather elements
- Shields materials from rain and sun damage
- Creates dry workspace in inclement weather

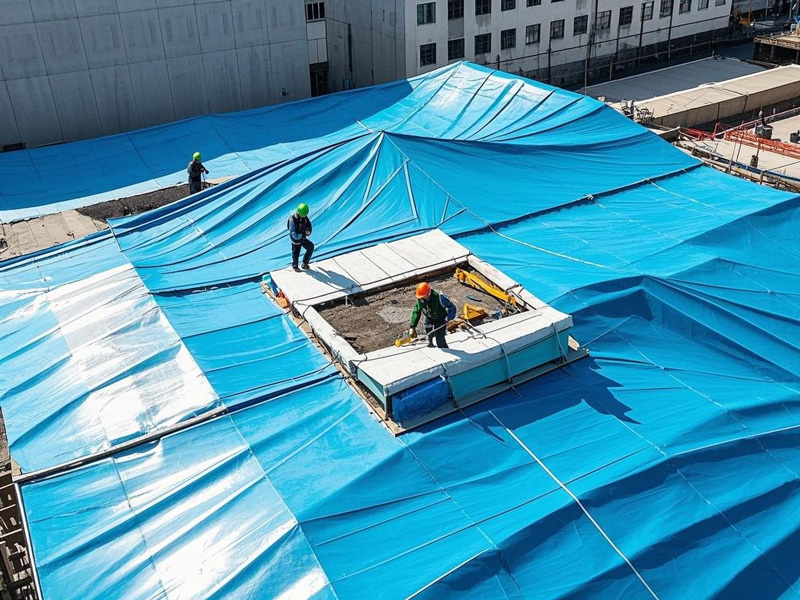

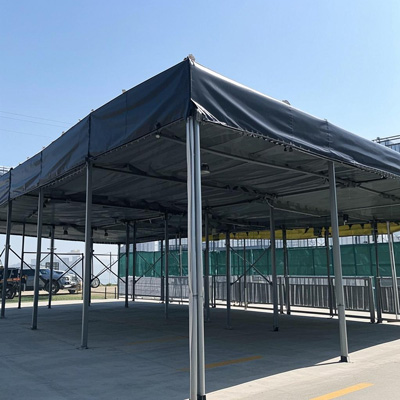

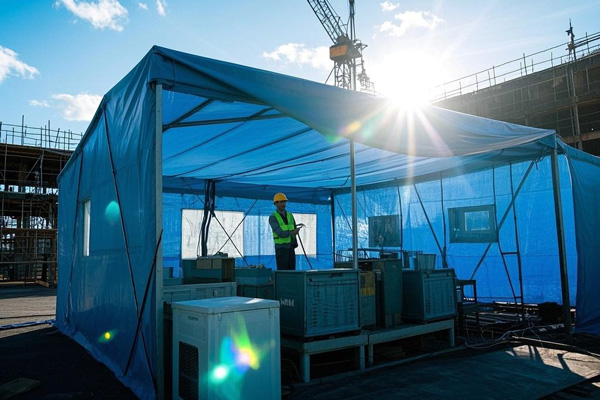

Temporary Warehouses
Roofing solution for large temporary storage structures and modular warehouses.
- Covers large areas with minimal seams
- Quick installation for rapid deployment
- Cost-effective alternative to permanent structures
Work Zone Enclosures
Roofing for temporary enclosures around construction activities and equipment.
- Protects equipment from weather damage
- Enables work in various weather conditions
- Reduces weather-related project delays
Product Gallery
Frequently Asked Questions

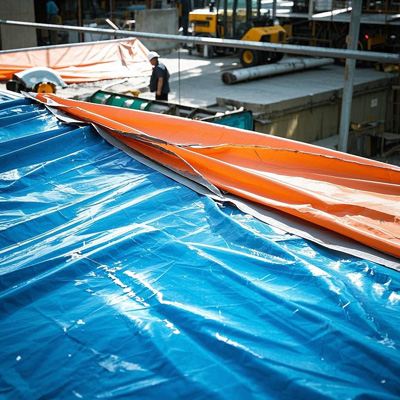

Installation Guidelines
1 Preparation & Measurement
- Measure the roof frame dimensions accurately, allowing 10-15cm overlap on all sides
- Inspect the frame structure to ensure it's stable and capable of supporting the tarp and weather loads
- Clear the installation area of debris and sharp objects that could damage the tarp
2 Tarp Placement & Securing
- Unroll the tarp carefully over the frame, ensuring it's centered with equal overhang on all sides
- Begin securing from one corner, then move to the opposite corner to ensure proper tension
- Work along each edge, securing every 50-100cm depending on wind conditions
3 Tensioning & Seaming
- Apply uniform tension across the entire surface to prevent pooling water
- For large areas requiring multiple tarps, ensure 30cm overlaps and secure along seams
- Seal overlaps with our specially formulated PVC seam tape for enhanced water resistance
4 Inspection & Maintenance
- Inspect all fastenings after installation and after severe weather events
- Adjust tension as needed to prevent sagging, especially before precipitation
- Clear debris regularly to prevent abrasion and water pooling
Need Custom Roof Tarps for Your Construction Project?
Our technical team can provide custom-sized roof tarps and installation recommendations based on your specific temporary structure design, location, and weather conditions.
Our Construction Protection Expertise
Construction Industry Experience
With 20+ years serving construction companies worldwide, we understand the unique challenges of job site protection.
Industry Certifications
Our roof tarps meet international construction standards including ISO 9001, CE, and various safety certifications.
Technical Support
Our engineers provide specifications, installation guidance, and custom solutions for complex construction projects.
