Heavy-Duty PVC Tunnel Construction Dust & Waterproof Tarpaulin
High abrasion resistance, dust containment, and waterproofing for underground tunnel projects
Product Description
Our industrial-grade PVC tunnel construction tarpaulin is specifically engineered for the harsh environments of underground construction projects. This specialized sheeting provides superior dust containment, waterproofing, and exceptional abrasion resistance to protect workers, equipment, and tunnel structures during construction.
Designed to withstand the rigors of tunnel excavation and construction, this heavy-duty tarp creates effective barriers that control dust propagation, manage water ingress, and protect sensitive areas from debris. Its rugged construction ensures long service life even in contact with rough surfaces, machinery, and construction materials.
Tunnel Environment Protection
Engineered to meet ISO 9001 construction standards, with tested abrasion resistance exceeding 50,000 cycles. Provides Class 3 water resistance (0.1m head for 24 hours) and 98% dust containment efficiency in tunnel environments.
Core Construction Features
High Abrasion Resistance
Withstands contact with rough surfaces and machinery
Complete Waterproofing
Prevents water penetration in wet tunnel conditions
Effective Dust Containment
Controls particulate spread in construction zones
Heavy-Duty Durability
Long service life in demanding construction environments
Industrial Standards
Complies with ISO 9001 and construction safety standards
Delivery
Custom lengths available with 7-10 day production time
Service Life
12-24 months in continuous construction use
Fire Rating
Class B1 fire retardant (construction standard)
Key Features & Benefits
Extreme Abrasion Resistance
Reinforced PVC construction with high-tensile scrim withstands contact with rough surfaces, rocks, and machinery in tunnel environments.
Superior Waterproofing
100% waterproof with heat-welded seams to prevent water penetration and manage groundwater in tunnel construction zones.
Advanced Dust Control
Dense weave construction contains particulate matter, improving air quality and safety for tunnel workers.
Easy Installation
Lightweight yet strong design with reinforced attachment points for quick, secure installation in tunnel environments.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Reinforced PVC with high-tenacity polyester scrim |
| Thickness | 1.2mm - 2.0mm (depending on application requirements) |
| Weight | 1200g/m² to 2200g/m² (based on thickness) |
| Standard Widths | 2m, 3m, 4m, 5m, 6m |
| Maximum Length | 50m in one piece (longer lengths with welded seams) |
| Water Resistance | Class 3 - 0.1m water head for 24 hours with no penetration |
| Abrasion Resistance | >50,000 cycles (Martindale test method) |
| Temperature Resistance | -30°C to +80°C (-22°F to +176°F) |
| Colors | Black, Gray, White, Yellow (high visibility) |
Tunnel Construction Applications

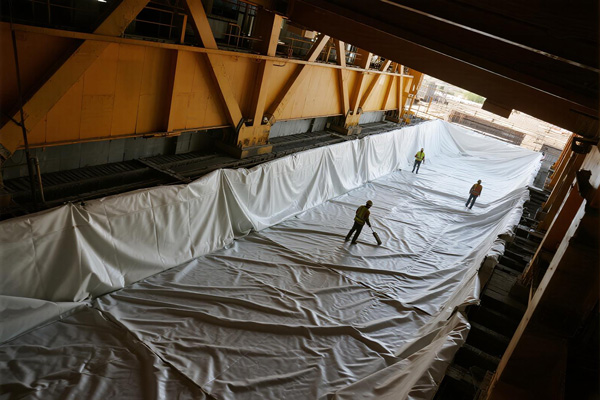

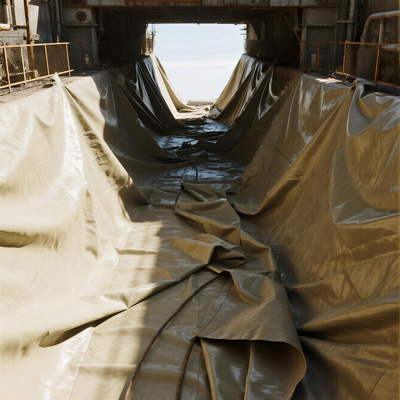

Dust Containment Zones
Creating controlled work zones to prevent dust propagation between tunnel sections during excavation.
- Reduces respiratory hazards for construction workers
- Controls particulate spread to sensitive equipment areas
- Maintains air quality in occupied tunnel sections

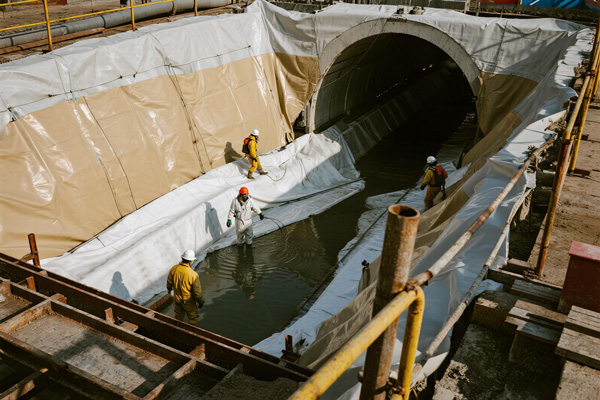

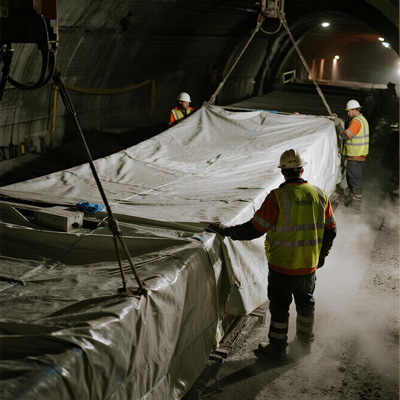

Water Ingress Management
Containing groundwater and managing water flow in tunnel sections during construction.
- Creates water-tight barriers in wet tunnel conditions
- Protects electrical equipment from water damage
- Channels water flow away from work zones

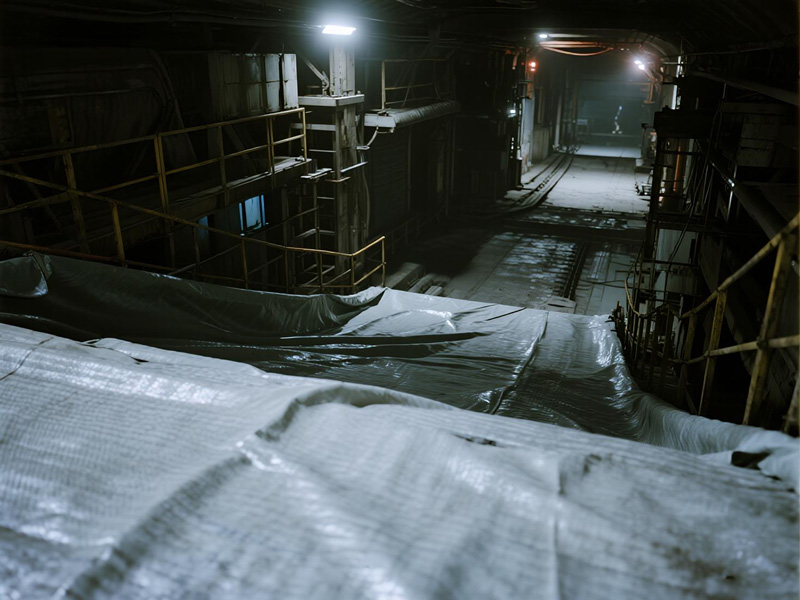

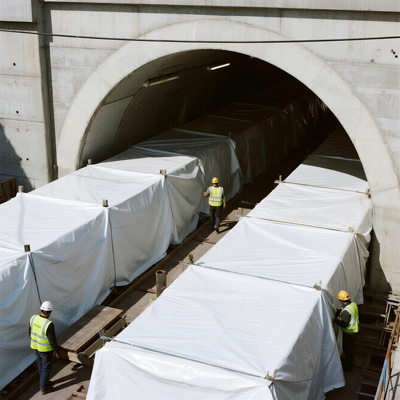

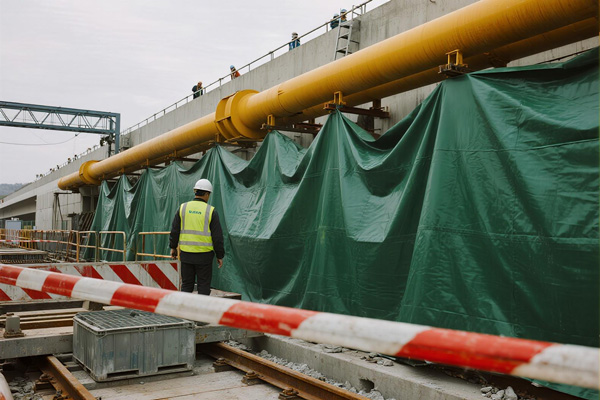

Work Zone Protection
Protecting completed tunnel sections and sensitive areas from construction debris and damage.
- Shields finished surfaces from construction activities
- Creates temporary barriers between work zones
- Protects equipment storage areas from dust and water

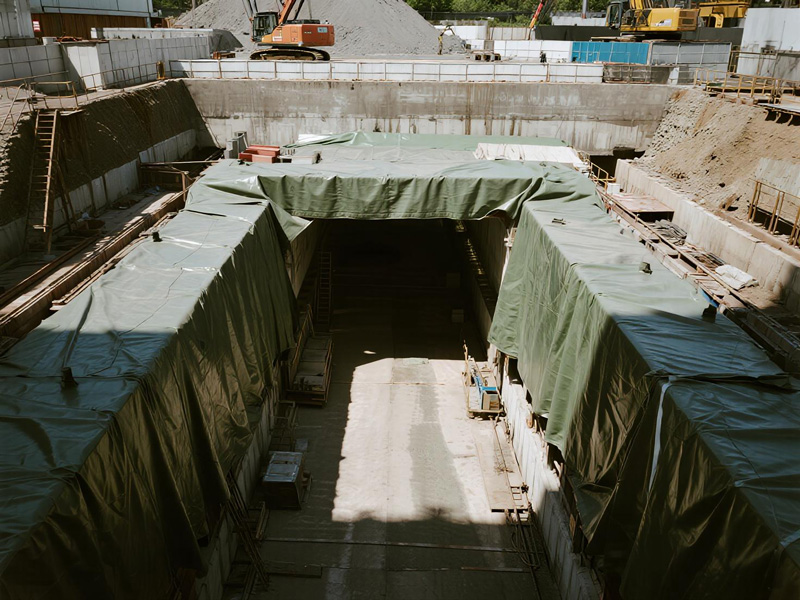

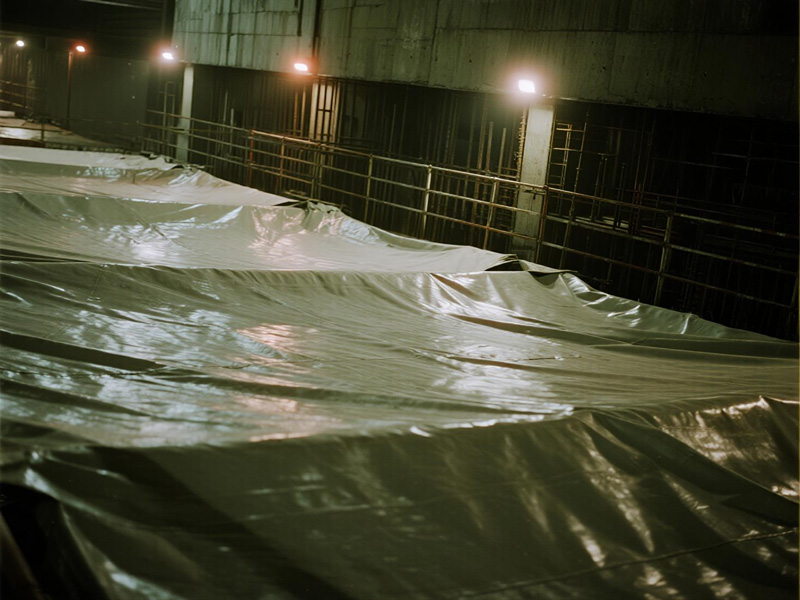

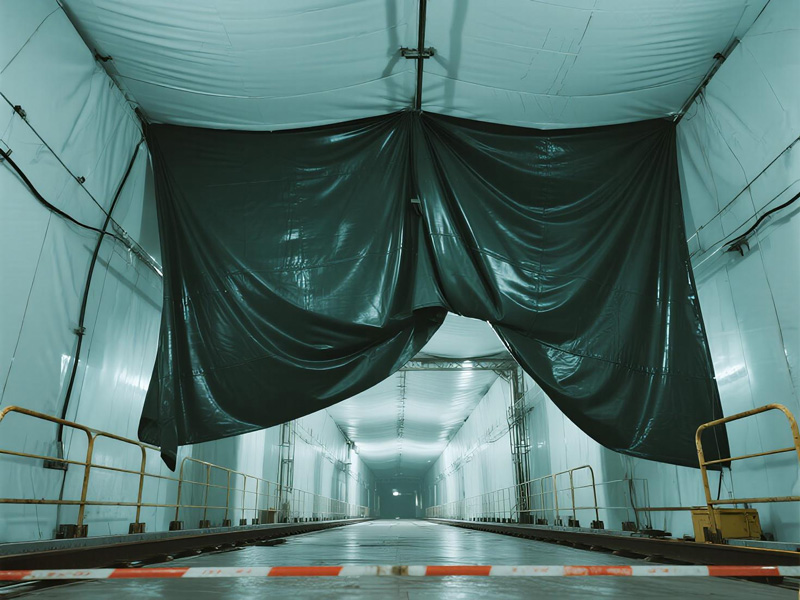

Construction Application Gallery
Frequently Asked Questions
Tunnel Installation Guidelines
1 Site Preparation & Measurement
- Measure tunnel dimensions accurately, accounting for any irregularities in walls or ceiling
- Clean attachment surfaces to ensure proper adhesion of fasteners or clamping systems
- Assess environmental conditions (moisture, dust levels) to confirm appropriate tarp specification

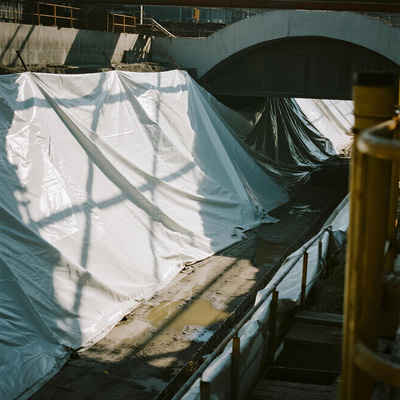

2 Attachment System Installation
- Install anchor points or support framework at recommended intervals (30-50cm)
- Ensure all attachment points are load-tested for safety in tunnel conditions
- For curved tunnel sections, use flexible attachment systems to maintain proper tension
3 Tarp Deployment & Securing
- Unroll tarp carefully, ensuring proper orientation with any printed guidelines
- Secure tarp to attachment points starting from one end, working systematically to opposite end
- Apply uniform tension to prevent sagging while allowing for thermal expansion/contraction
4 Seaming & Maintenance
- Seal overlaps (minimum 30cm) with industrial-grade PVC tape for dust and water tightness
- Inspect weekly for damage, particularly in high-traffic or high-abrasion areas
- Make immediate repairs to small tears using our field repair kit to prevent escalation
Need Tunnel Construction Protection Solutions?
Our technical team can provide custom solutions based on your specific tunnel dimensions, geological conditions, and construction requirements to ensure optimal dust control and waterproofing.
Our Tunnel Construction Expertise
Major Project Experience
Supplied tunnel protection solutions for metro systems, road tunnels, and railway tunnels in over 40 countries worldwide.
Industry Certifications
Our tunnel tarps meet ISO 9001, CE, and various national construction standards for underground works.
Custom Engineering
We provide custom solutions for unique tunnel geometries and specialized construction requirements.
